Fully Automatic Vibrating Plate Loading Power Transformer WindingMmachine

FOB Reference Price:Get Latest Price
$22,000.00 - $30,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
KBF-5012A
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Feeding fixture (Min. Order: 1 Pieces)
Blank fixture (Min. Order: 12 Pieces)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
Kungta
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Spindle:
12
Spindle pitch:
50mm
Spindle position precision:
±0.1
Moving position precision:
0.01MM
Entanglement angle:
0 .90 ±45
Guide pin mioving range(MM):
X:110 ,Y:150,Z:70
Servo motor power (W):
X:200,Y:200,Z:400,U:1500
Air pressure:
0.4-0.65Mpa
Max wire diameter MM:
30
Tape width range:
3-30mm
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Supply Ability
Supply Ability:
100 Piece/Pieces per Month for power transformer winding machine
Packaging & Delivery
Packaging Details
Power Transformer Winding machine packing information check as below:
Product dimension:1350*1250*1400MM
Weight:950kgs
Wood box dimension:1500*1400*1550MM
Weight:1000kgs
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

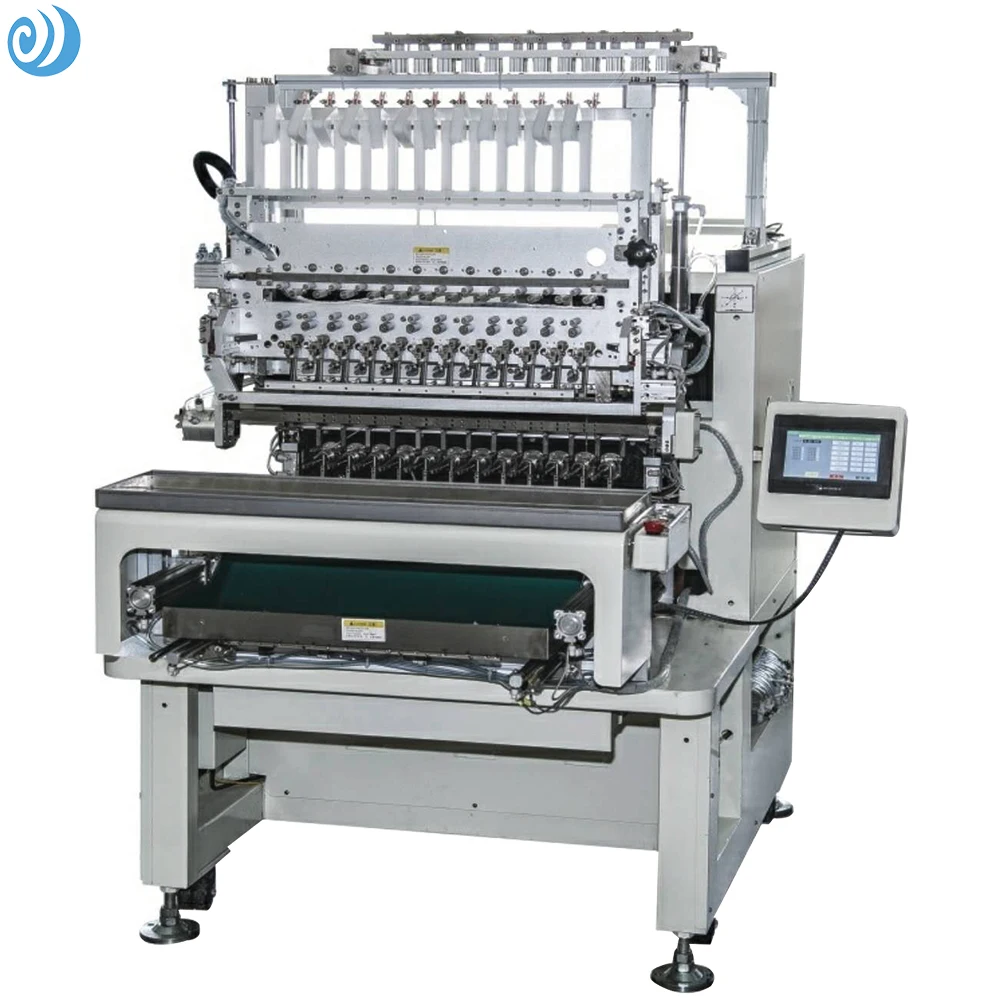

Hot sale good quality Full automatic electronic transformer winding machine with automatic loading tray 12 axes

Spindle
12
Spindle pitch
50mm
Wire Range
0.02-0.6MM
Spindle speed
12000RPM/MIN
Spindle position precision
±0.1º
Moving position precision
0.01MM
Entanglement angle
0º.90º,±45º
Guide pin mioving range(MM)
X:110 Y:150 Z:70
Servo motor power (W)
X:200 Y:200 Z:400 U:1500
Air pressure
0.4-0.65Mpa
Voltgae
AC220V/50HZ
Power(W)
3000
Weight
950kgs
Dimension(L*W*H)
1350*1250*1400MM
Max wire diameter MM
30
Tape width range
3-30mm

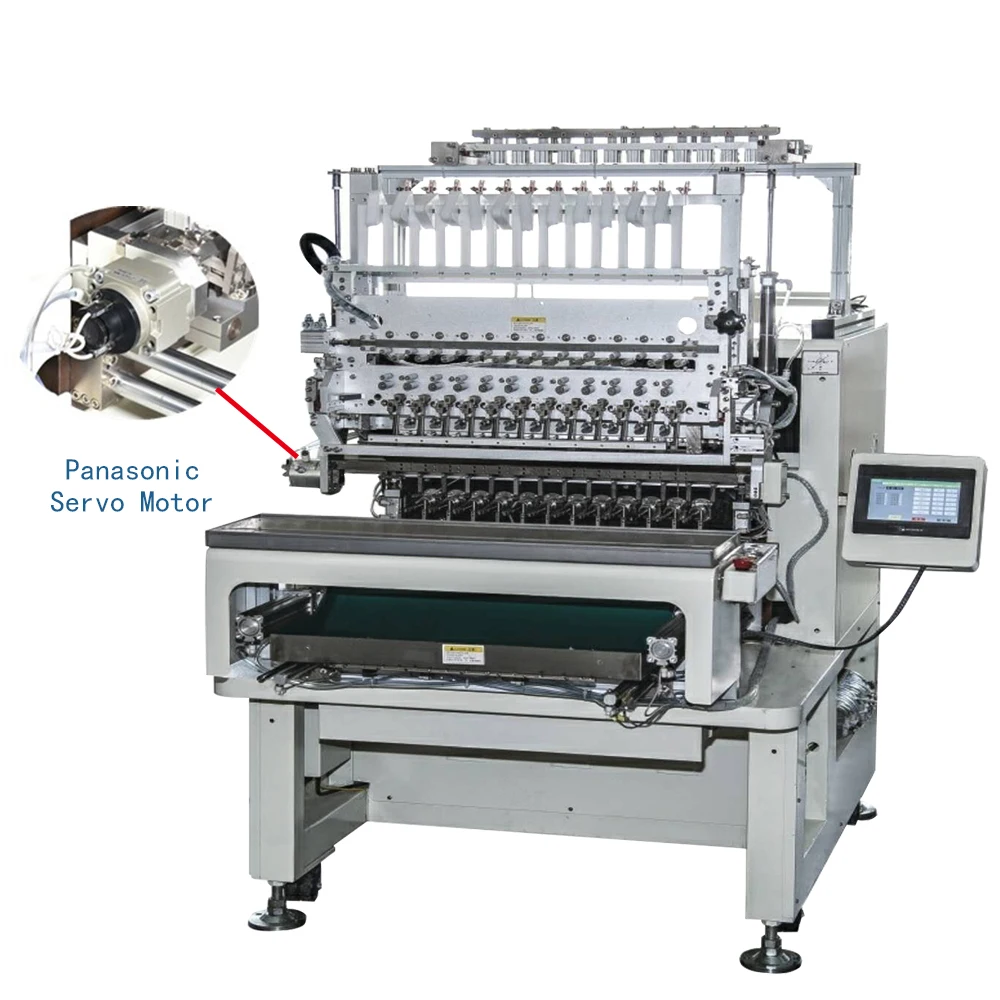

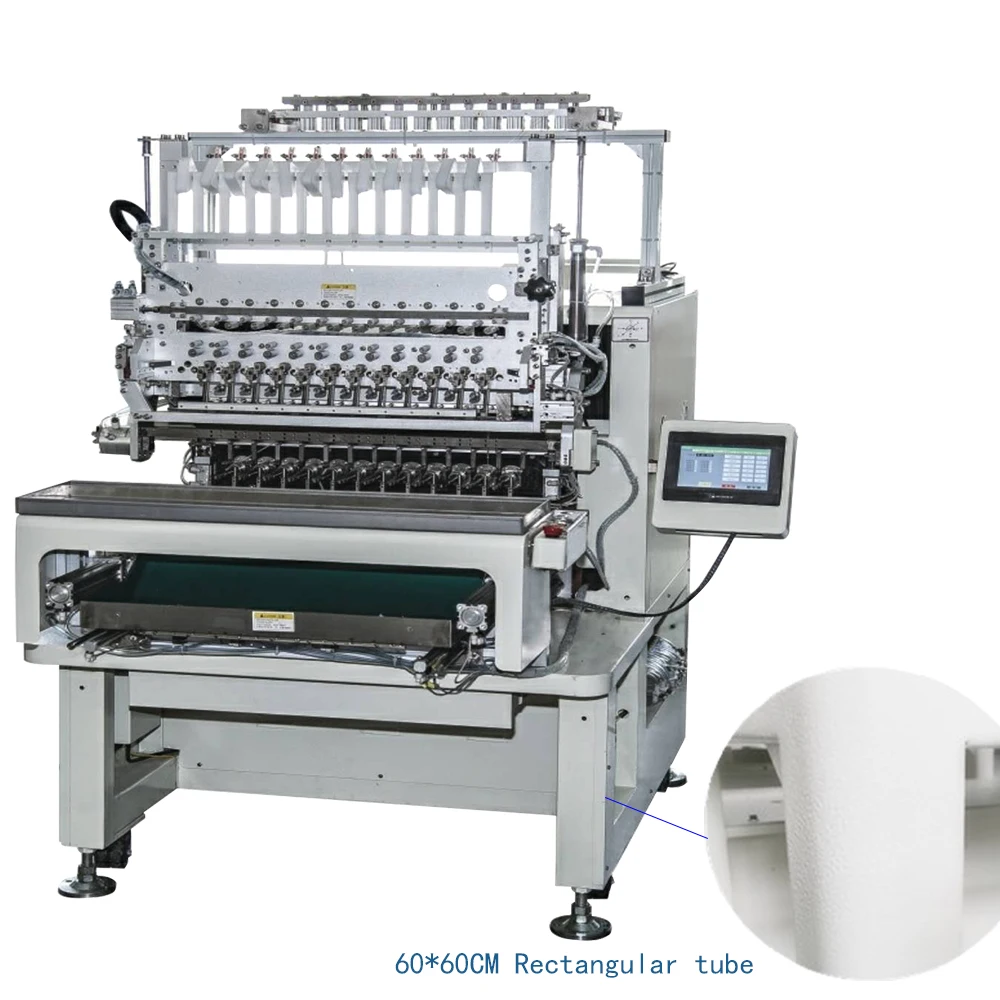

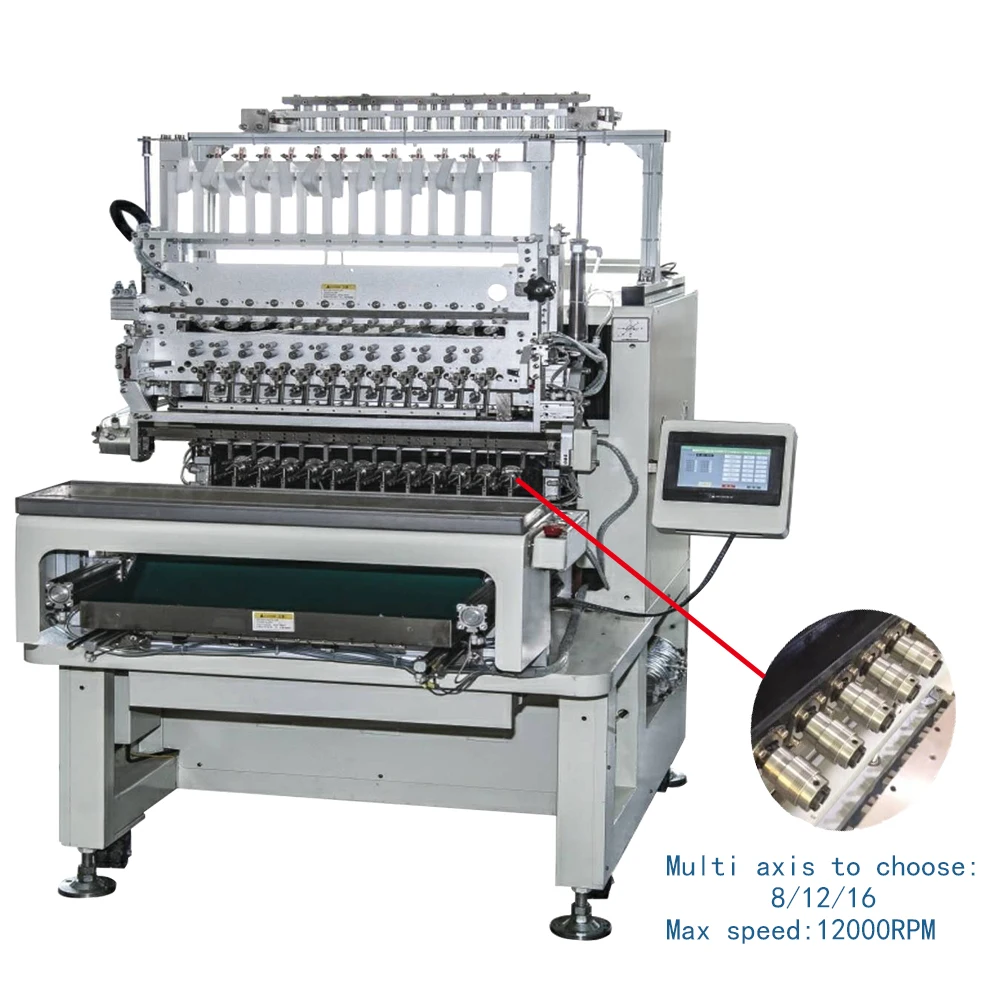

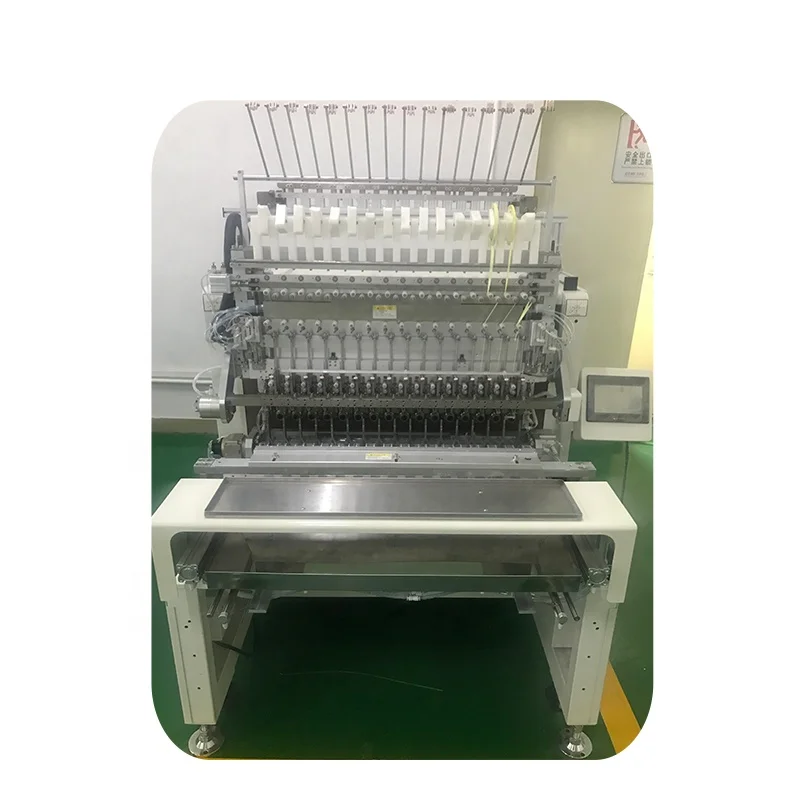

Detailed Images
Product Uses

Hot sale good quality Full automatic electronic transformer winding machine with automatic loading tray 12 axes

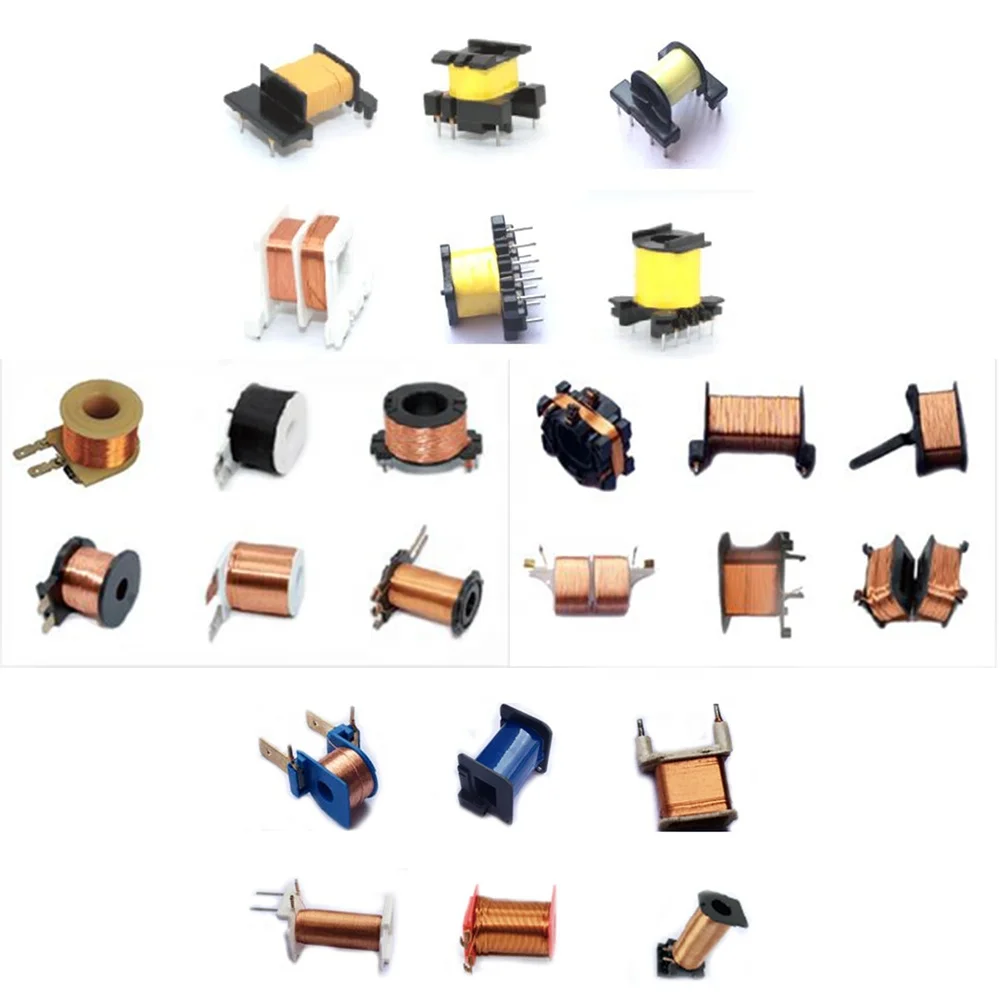

What our transformer coil winding machine can do?
The answer check as below picture.

Related Products

Hot sale good quality Full automatic electronic transformer winding machine with automatic loading tray 12 axes

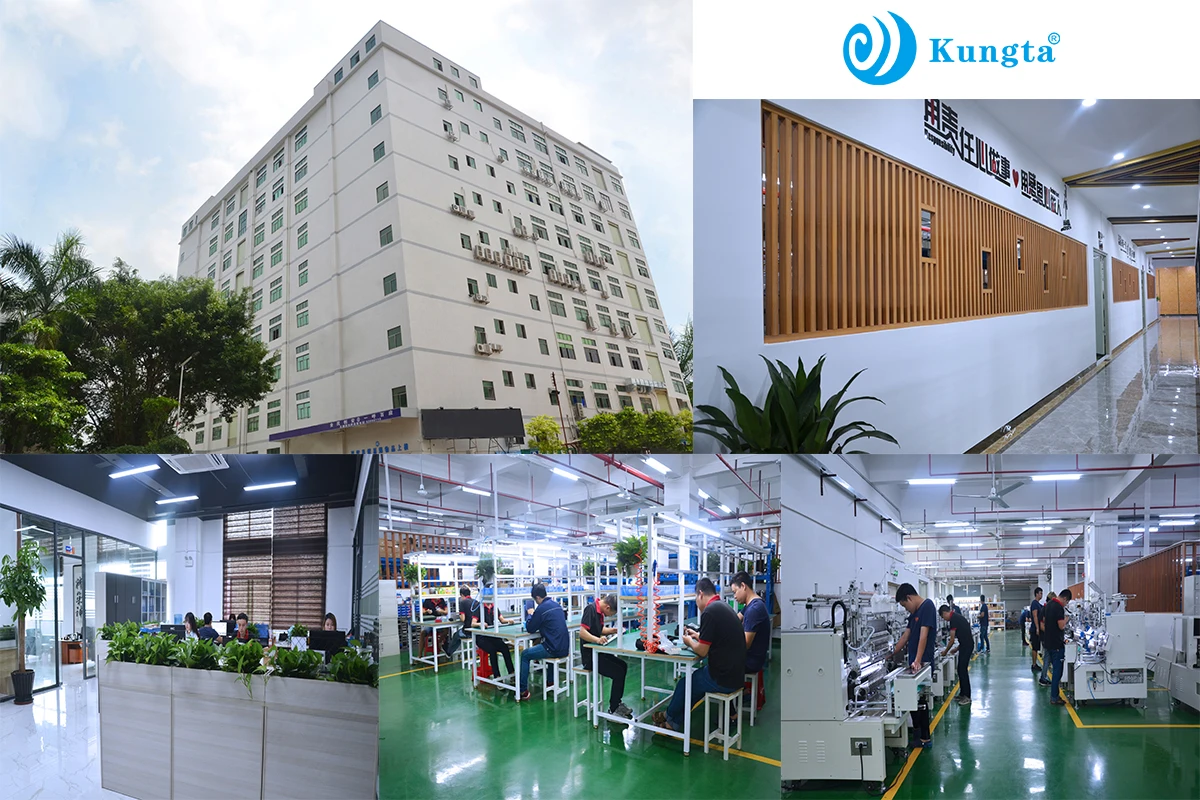

Company Profile

Hot sale good quality Full automatic electronic transformer winding machine with automatic loading tray 12 axes

Dongguan Guangtaida Precision Automation Equipment Co., Ltd. is a professional technical enterprise engaged in the research and development, production, sales and service of automatic winding machine and peripheral equipment. It is one of the leading suppliers of high-performance winding equipment.Main products are automatic multi-axis winding / coating machine, automatic inner winding machine, automatic outer winding machine, automatic feeding winding / coating system, automatic feeding wire soldering / winding coating solder system, automatic dispensing machine, CCD dispensing machine, automatic solder welding machine, automatic testing machine and so on.
We are committed to providing high-quality automated production integration solutions for industry customers, with professional technology to help smart manufacturing upgrades in mobile phones, LED, photovoltaic solar, automotive, security, PC, power, network, audio, home appliances and other industries. Companies accelerate product design, procurement, production and delivery cycles while reducing costs.

Packaging & Shipping

Hot sale good quality Full automatic electronic transformer winding machine with automatic loading tray 12 axes
Transformer Coil Winding machine packing information check as below:
Product dimension:1350*1250*1400MM
Weight:950kgs
Wood box dimension:1500*1400*1550MM
Weight:1000kgs

Our Service

Hot sale good quality Full automatic electronic transformer winding machine with automatic loading tray 12 axes

Service for our transformer coil winding machine:
1. 12 months warranty time.
2.Online and video support.
3.Overseas after sales service.
